GATE VALVES-S7013

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 20000times

Suitable for water services

Send email to us Download as PDF

Product Detail

Product Tags

Brass gate valve is made of forged brass and operated with hand wheel, the flow rate is controlled by the disc which moves in vertical direction, easy to open and close, widely used for plumbing, heating, and pipelines.

Product information :

Product name	GATE VALVES
Sizes	1"-12"
Bore	Full bore
Application	Water and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Working durability	20,000 cycles
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
	Customized design acceptable

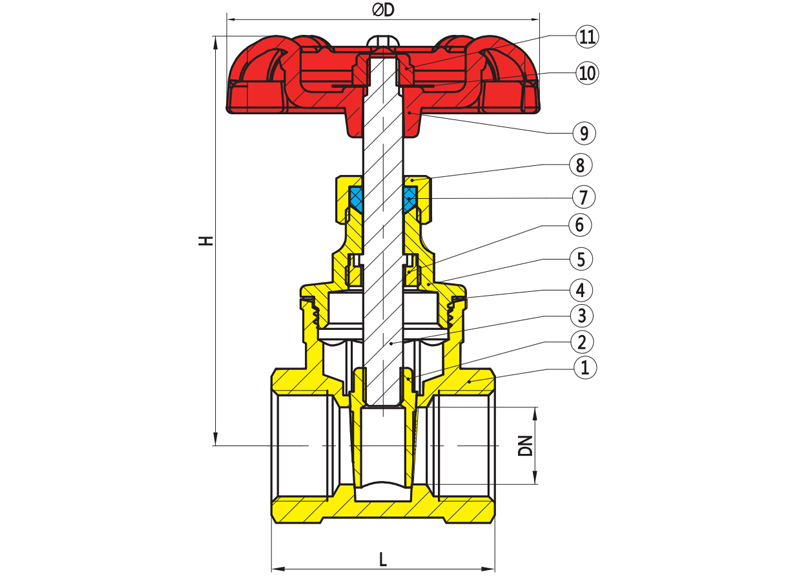

Spare Part for gate valves

NO	Component	Material
1	Body	Brass
2	Flashboard	Brass
3	Press cap	Brass
4	Sealing ring	PTFE
5	Bonnet	Brass
6	Lock cap	Brass
7	Filler	PTFE
8	Lock cap	Brass
9	Handwheel	Steel
10	Nameplate	AL
11	Nut	Steel

Bore sizes for gate valves

SIZE	L	H	DN	D	Weight	Carton
1/2"	41	66.5	12	53	211	108
3/4"	42.5	76	14.5	53	257	72
1"	50.5	82.5	19	59	356	48
11/4"	53	89.5	24	75	500	24
11/2"	56.5	109	30	78	712	24
2"	61	125.5	38	81	1027	12

Production flow of Brass Ball Valves :

Brass material Chemical composition used for brass ball valves:

Available surface treatments of brass ball valves:

Packing of brass ball valves:

Testing Lab for brass ball valves:

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
