CHECK VALVES-S1017

Short Description:

Working pressure:1.6MPa

Working Medium:Water

Working temperature: -20℃≤t≤+110℃

Thread Confirmed to ISO228

Main Material:Forged Brass

Send email to us Download as PDF

Product Detail

Product Tags

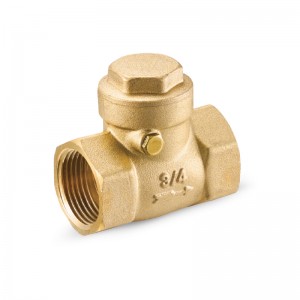

Brass Spring Check Valve with Filter is made of forged brass, also called non-return valve, designed to control backflow of fluid control system, the fluid is directed by disc and flows in one direction, widely used for plumbing, pumping, and pipelines.

Product information :

Product name	CHECK VALVES
Sizes	1/4”-1/2",3/4”
Bore	Full bore
Application	Water, oil, and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Working durability	10,000 cycles
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

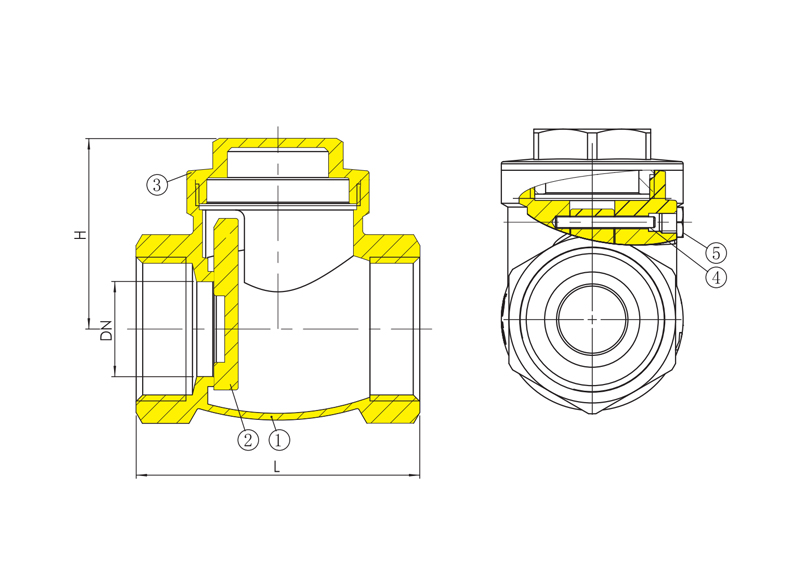

Bore sizes for check valves:

SIZE	L	H	DN	Weight	Carton
1/2"	48	33	12.5	127	192
3/3"	53.5	37	17	185	120
1"	65.5	44	22	305	72
11/4"	74	48.5	28	490	42
11/2"	82	53	33	630	36
2"	92.5	59	44	1037	18
21/2"	104	76.5	53	1650	6
3"	124	82.5	64	2471	4
4"	160	100	83	4780	2

Brass material Chemical composition used for check valves:

Available surface treatments of check valves:

Packing of check valves:

Testing Lab for check valves:

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
